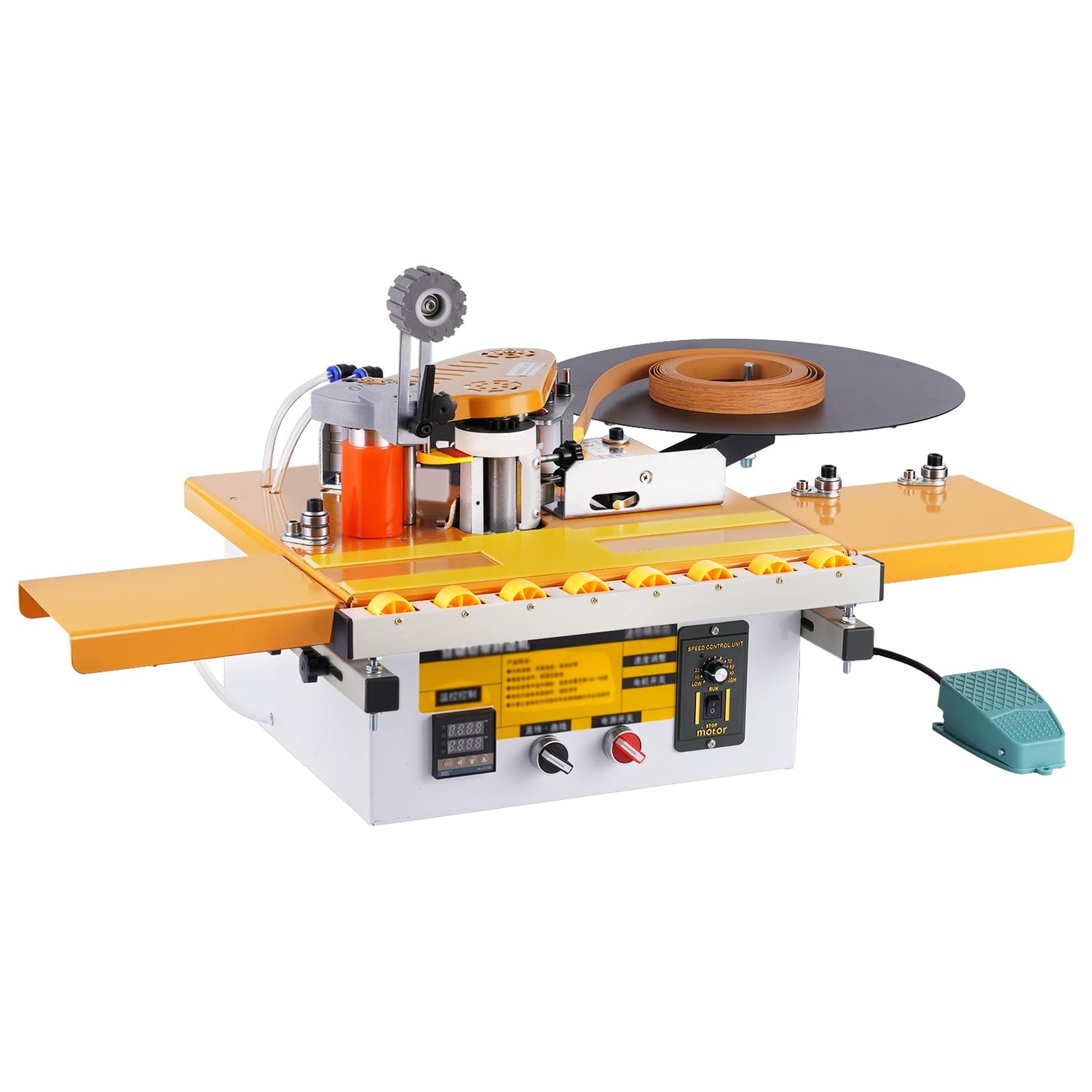

YUCHENGTECH Edge Bander Banding Machine Automatic Tape Breaking Portable Edge Banding Machine Curve Straight Edge Bander With Microcomputer Intelligent Temperature Control (110, Volts (AC))

Brand: YUCHENGTECH

Features:

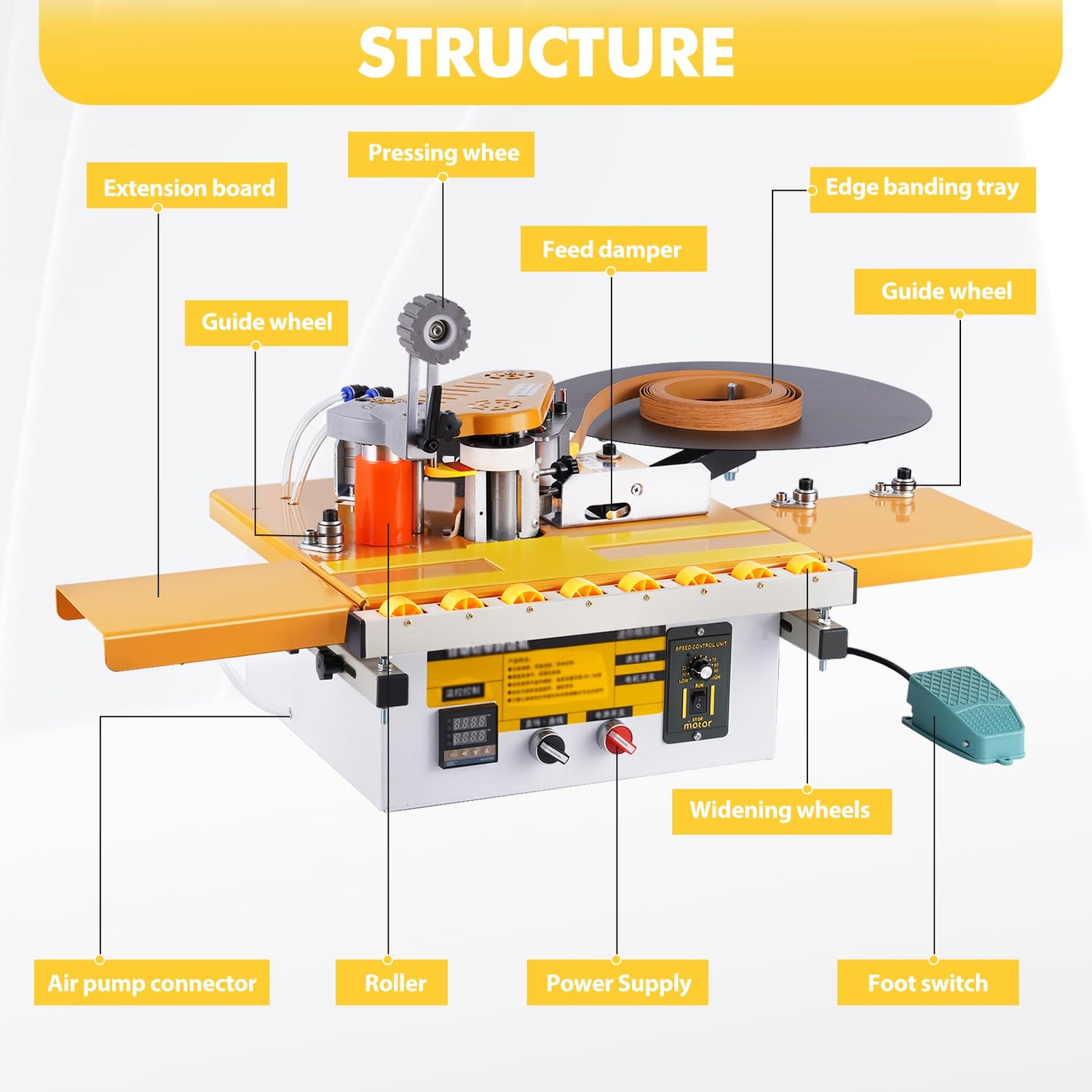

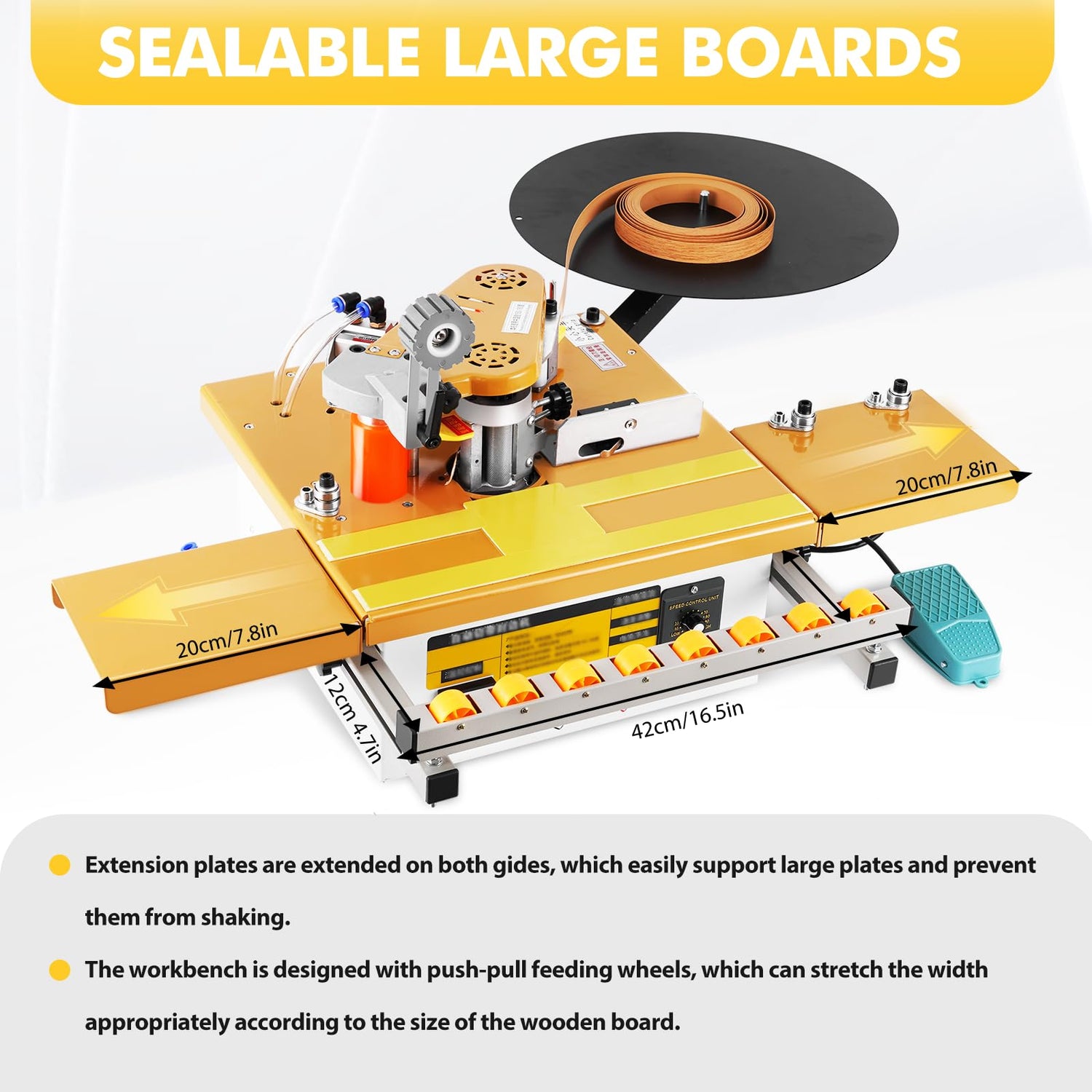

• 1.【Longer and wider sealable large boards】: This edgebander is better suited to handle large size boards. Extension plates are extended on both gides, made of pure aluminum and fixed with optical shafts, which easily support large plates and prevent them from shaking，ensuring smooth pushing and pulling during operation. The workbench is designed with push-pull feeding wheels, which can stretch the width appropriately according to the size of the wooden board. The smooth wheels can effectively push the board forward and improve the efficiency of edge sealing.

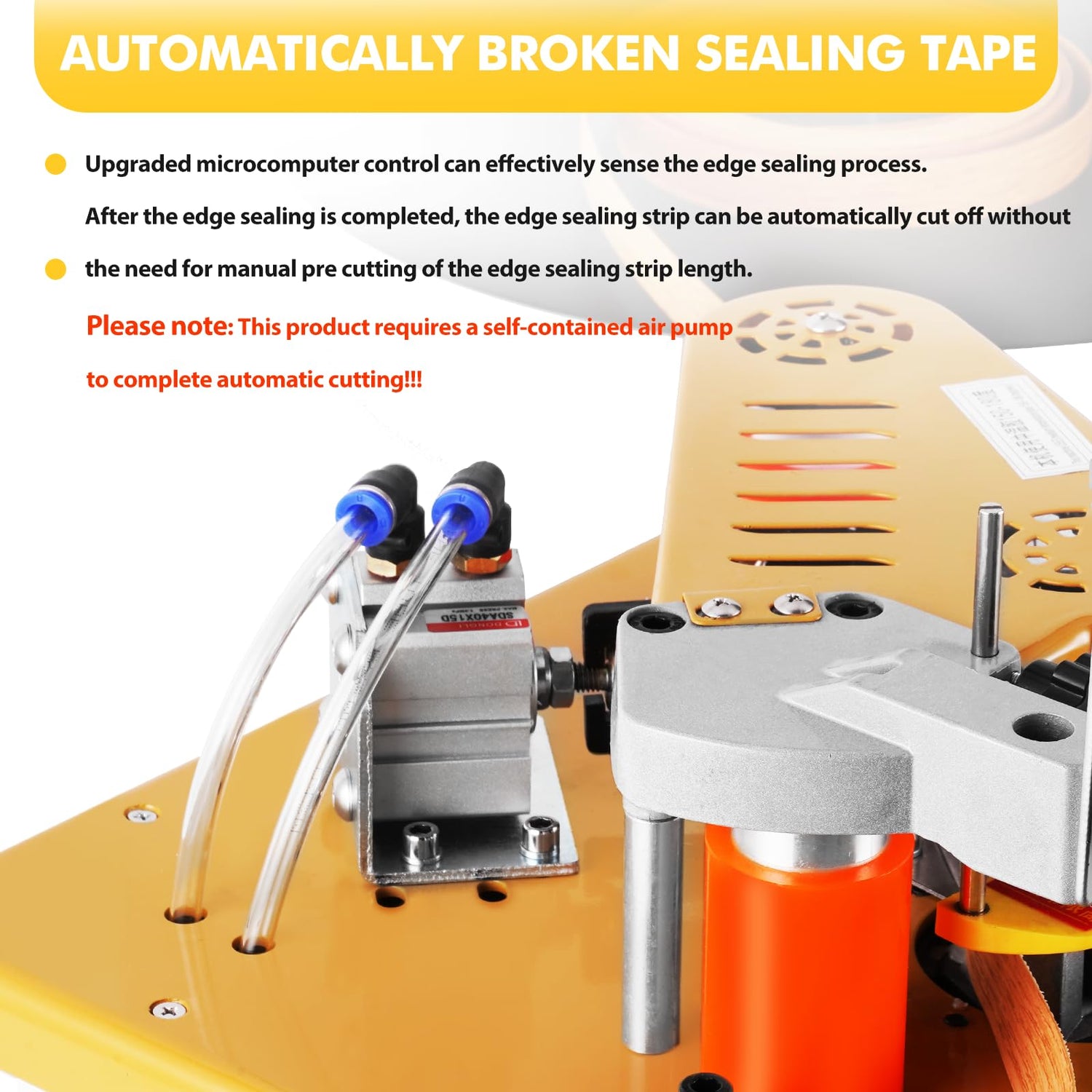

• 2.【Automatically broken sealing tape】: Upgraded microcomputer control can effectively sense the edge sealing process. After the edge sealing is completed, the edge sealing strip can be automatically cut off without the need for manual pre cutting of the edge sealing strip length. It can achieve precise cutting position, increase cylinder cutting efficiency, and neat cutting, saving time and manpower and improving work efficiency. Please note: This product requires a self-contained air pump to complete automatic cutting!!!
• 3.【Two control switches】: Travel switch control straight line edge sealing: press and hold the travel switch during edge sealing to control the feeding of the edge sealing machine, when the edge sealing is finished and the board leaves the edge sealing travel switch, the tape can be broken automatically. Foot switch control curve edge sealing: step on the foot switch to control the transmission of edge sealing strip, when the end of edge sealing leave the foot pedal, this time will automatically break the tape.

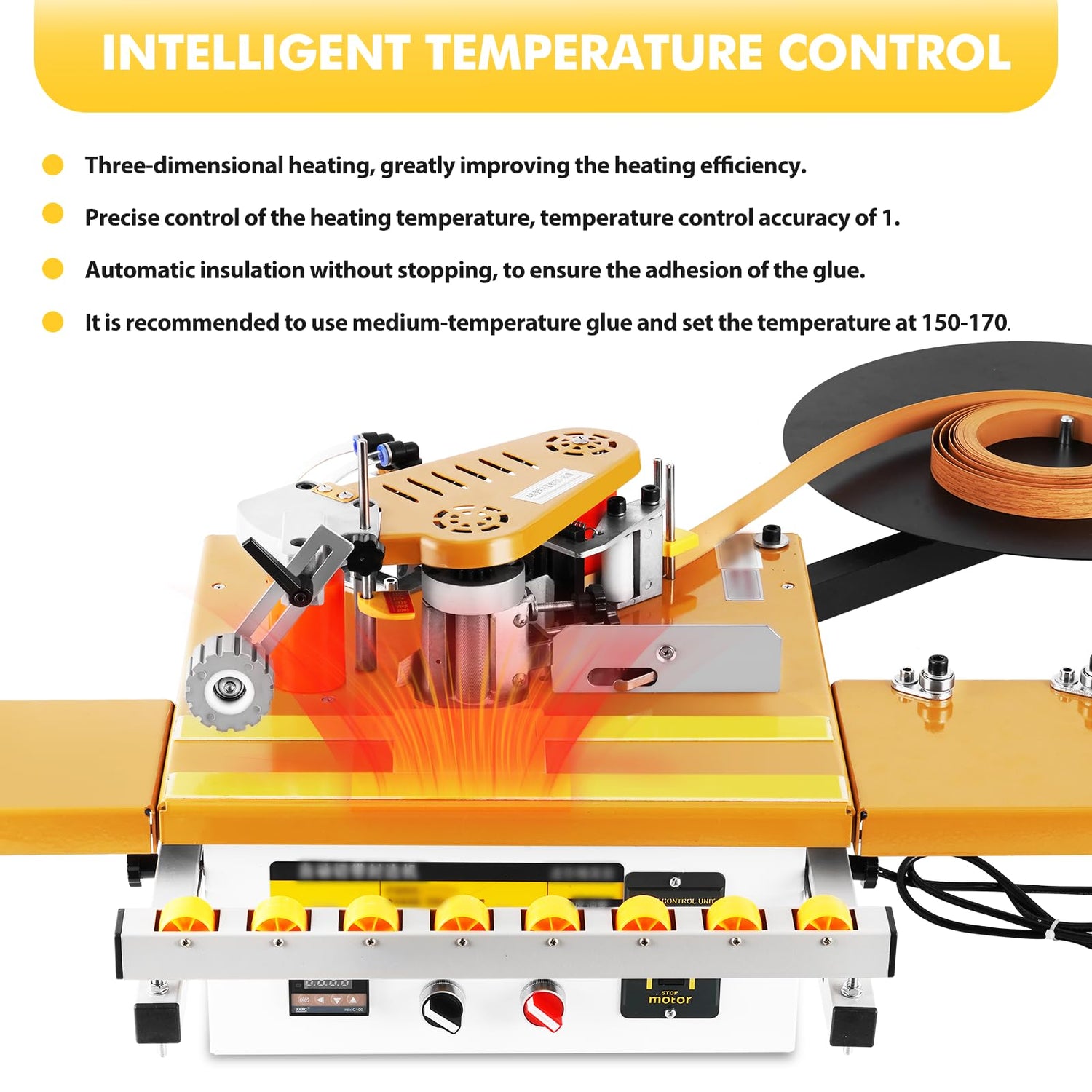

• 4.【Intelligent temperature control system】: three-dimensional heating, greatly improving the heating efficiency, precise control of the heating temperature, temperature control accuracy of 1℃, automatic insulation without stopping, to ensure the adhesion of the glue and sealing effect, long-lasting durability does not hurt the machine. It is recommended to use medium-temperature glue and set the temperature at 150-170℃.
• 5.【Application】: Widely used in furniture manufacturing, decorative material processing, construction industry, wood product processing and other fields. Suitable for all kinds of plates and edge strips, such as: ABS, PVC, particle board, melamine board, fine wood board, MDF, integrated board, acrylic board, etc.

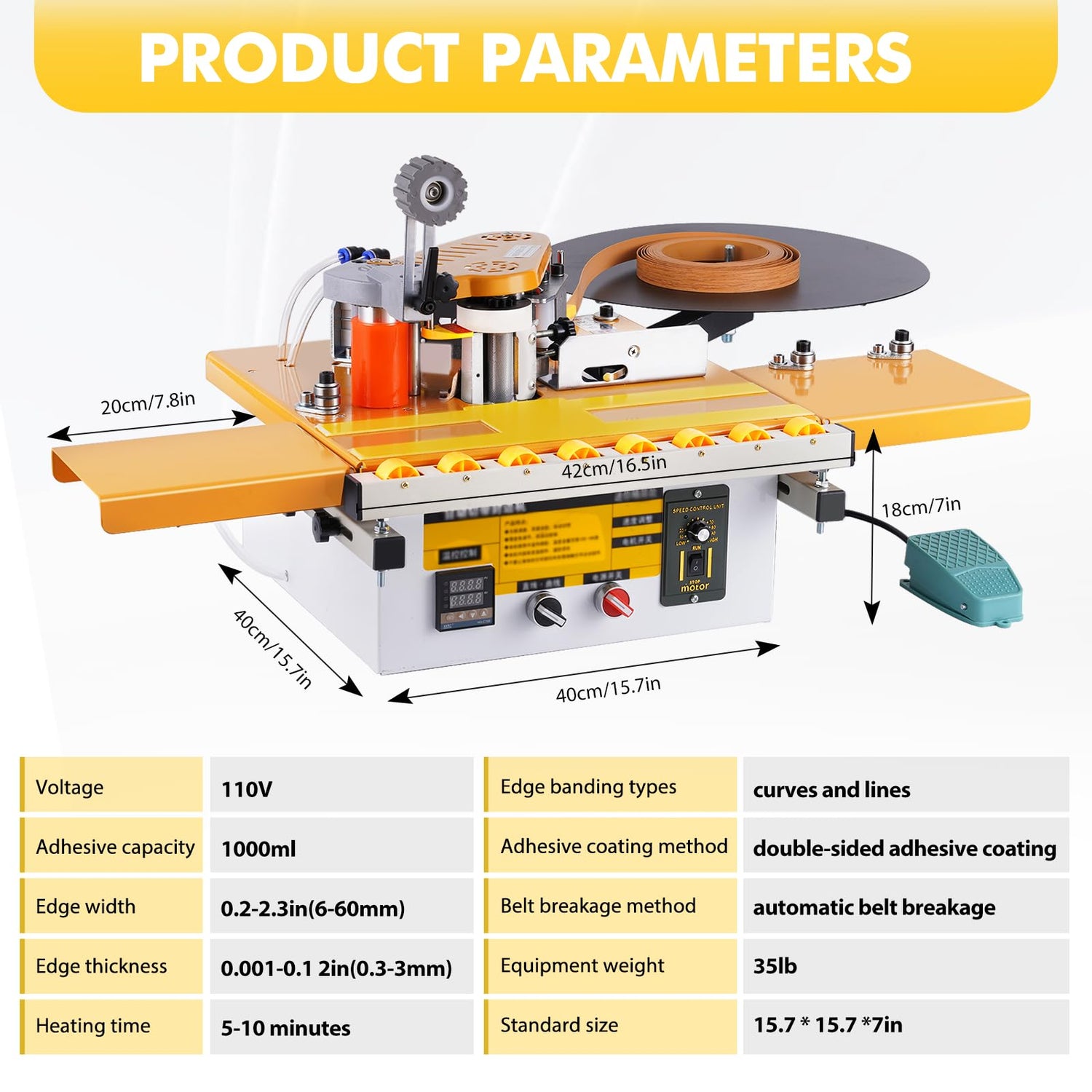

Details: Parameters:

Voltage: 110V

Edge width: 6-60mm

Heating time: 5-10 minutes

Adhesive capacity: 1000ml

Adhesive coating method: double-sided adhesive coating

Belt breakage method: automatic belt breakage

Edge banding types: curves and lines

Standard size: 40 * 40 * 31cm

Equipment weight: 16KG

model number: NNW-930
