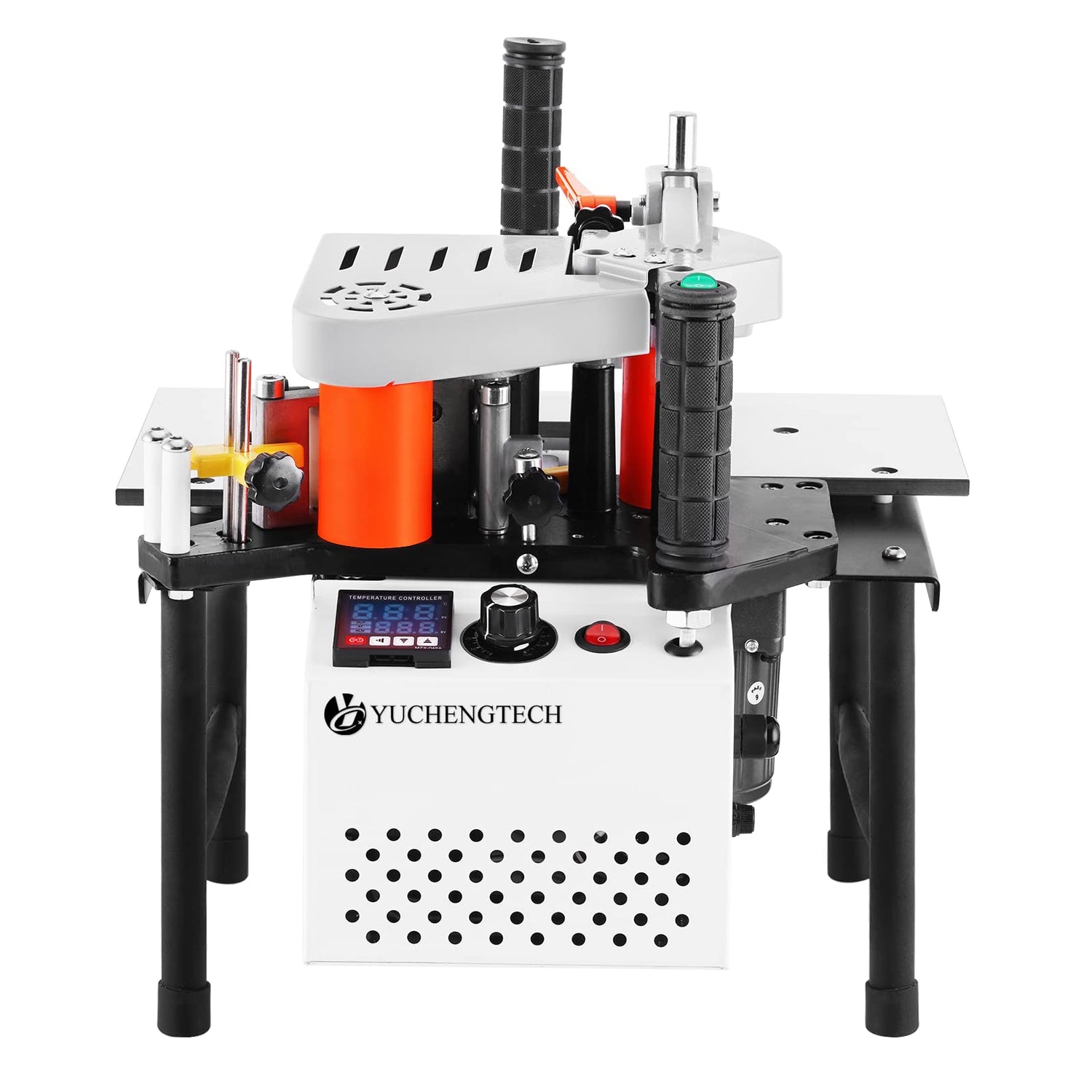

YUCHENGTECH Woodworking Edge Bander Banding Machine Portable Edge Bander Curve Straight Edge Banding Machine With Speed Control 5-10m/min (110V,

Brand: YUCHENGTECH

Color: Adjustable Speed

Features:

• 1.Advantages: More suitable for sealing edges of different shapes, finer and shorter edges. It can seal straight edge, curve, outer arc, inner arc and circumference (arc radius 20mm or more), and the length of the frame is not limited.
• 2.Characteristic: Portable edge banding machine, small size, light weight, can carry edge banding, can also be in desktop. Free from time and space constraints, it can be operated anytime, anywhere.

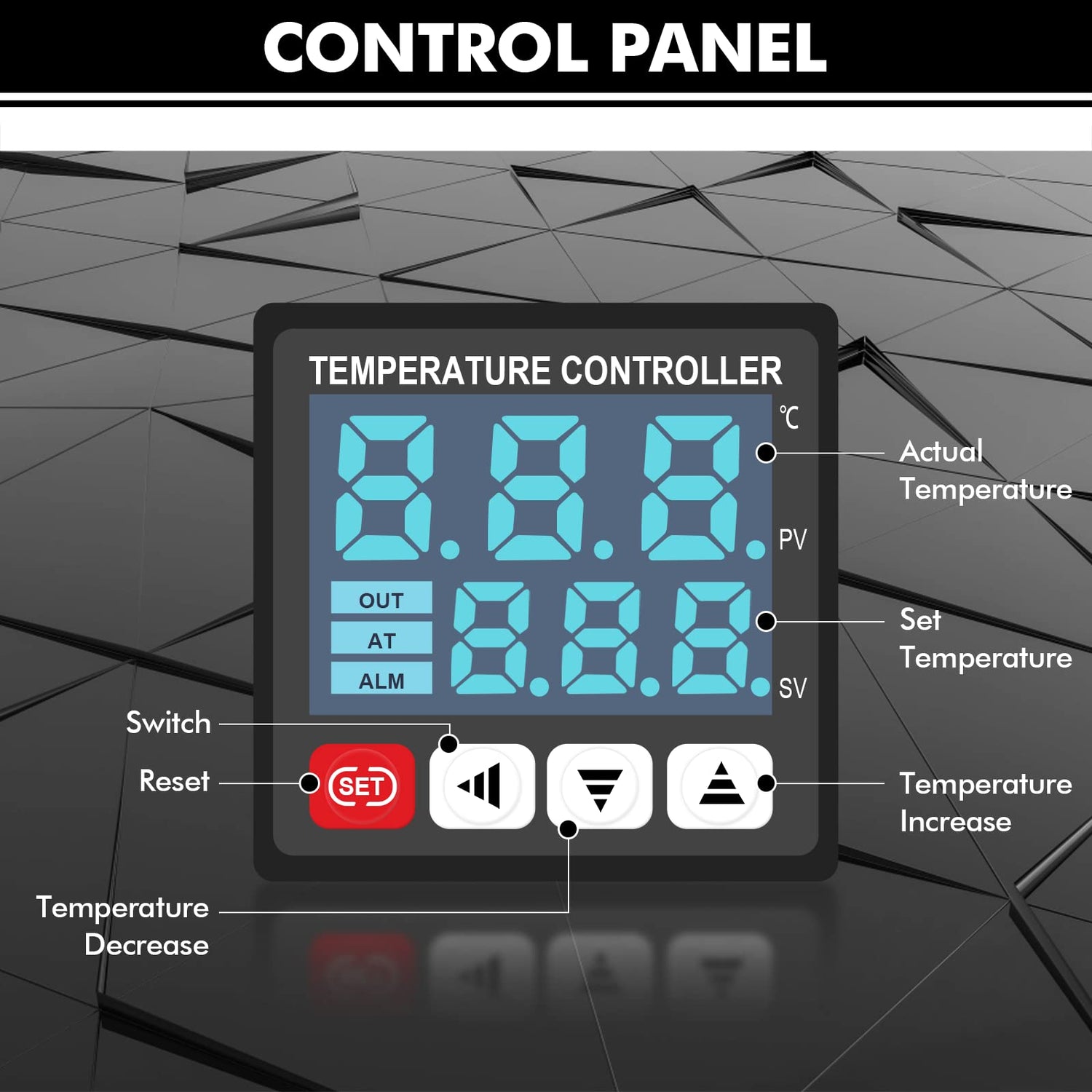

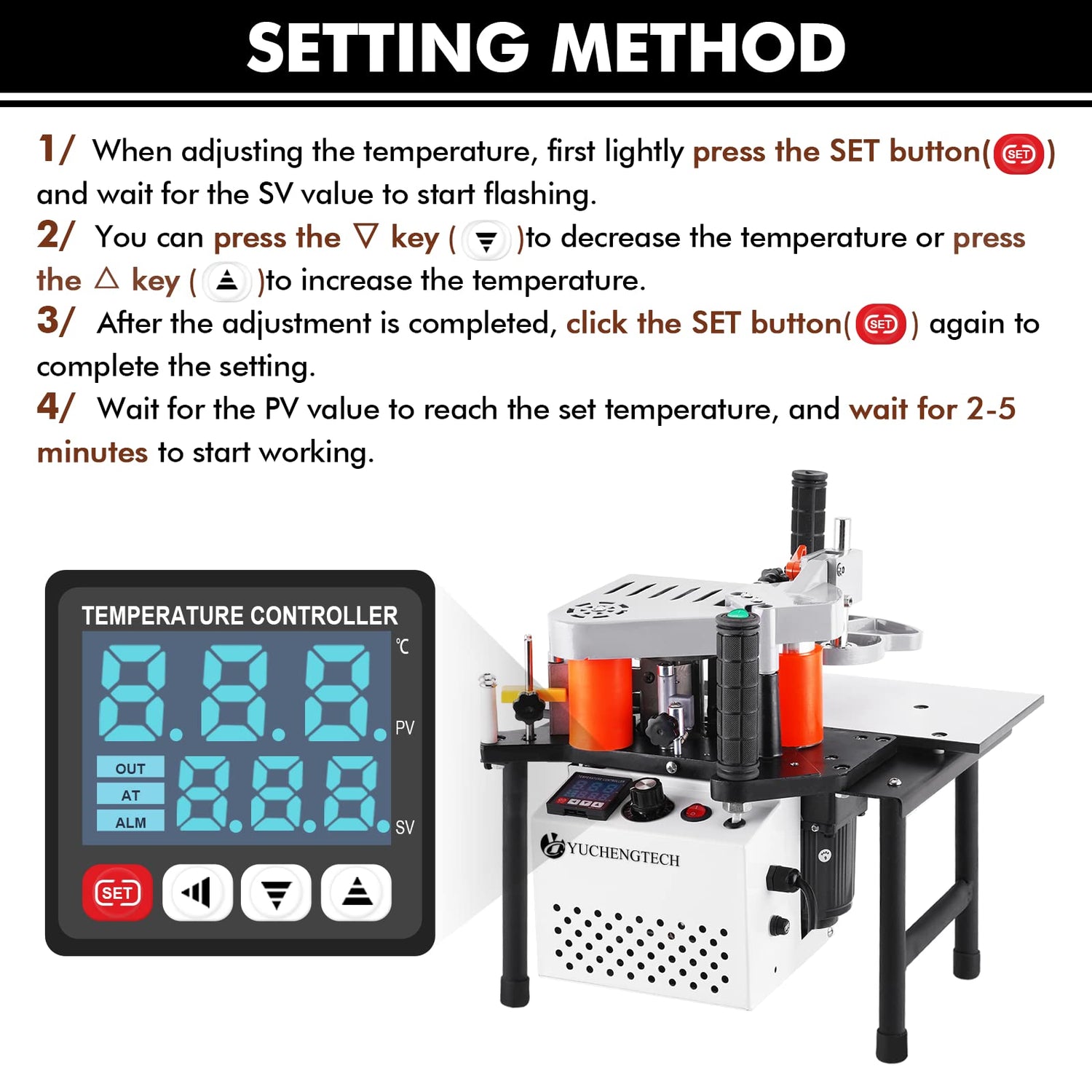

• 3.Glue and temperature: Upgrade the heating system for stronger edge sealing. High temperature glue: the temperature should be adjusted to 220-230¡ãC; medium and low temperature glue£ºthe temperature should be adjusted to 150-170℃.
• 4.Important parameters: The speed can be adjusted. Edge sealing speed: 5 ~ 10 m / min; Edge band width: 16-40mm; Gluing method: double side gluing; Heating time: 5 ~ 10 minutes; Rubber pot capacity: 1000ml.
• 5.Applications: Suitable for all kinds of plates and edge strips, such as: ABS, PVC, particle board, melamine board, fine wood board, MDF, integrated board, acrylic board, etc.

Binding: Tools & Home Improvement

model number: NNW-634

Part Number: NNW-634

Details: Usually the product will be sent in 1-4 working days and takes about 2--7 business days to reach you


Product Description


Features:

This product is especially suitable for the decoration industry, it can be used for cabinets, wardrobes, wooden doors.

Feel free to change the work site and operate at the construction site.

Suitable for wood board: fiberboard, solid wood board, MDF.


Applicable materials and workpieces:

1.Suitable for edge-sealing: Flexible melamine impregnated paper, wood, plastic and other furniture edge-sealing materials.

The coated surface must be flat and not deformed when hot melt adhesive is applied. Plastic edge band, glued surface must be pre-coated with back glue.

2.Suitable Hot Melt Adhesive: Melting Point 120-180 Melting Point Low Temperature Hot Melt Adhesive.

3.Suitable for work-piece frame: wood board, particleboard, medium fibre board, particulate board, etc., which can be bonded with hot melt adhesive.

4. Shape of border: straight line, curve, outer arc, inner arc and circumference (radius of arc is more than 20 mm), the length of border is unlimited.

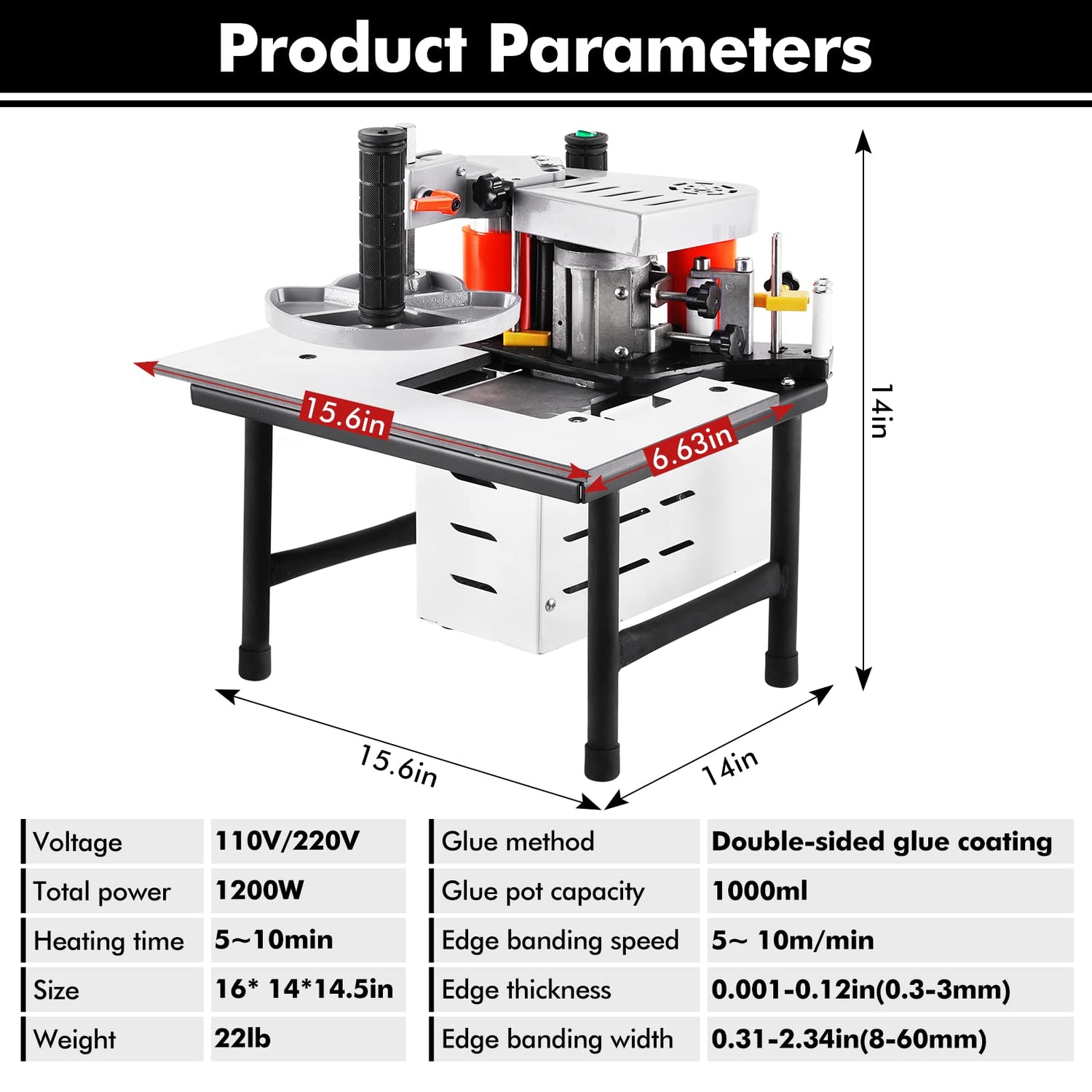

Parameter

Voltage: 110V

Total power: 1000W

Edge banding speed: 5-10m/min

Glue pot capacity: 1000ml

Heating time: 5-10 minutes

Speed mode: adjustable

Coating method: double-sided coating

Size: 40*36*37 cm

Net weight: 10 kg

EAN: 9443389960243

Package Dimensions: 17.7 x 17.7 x 15.9 inches
