Z Axis Automatic Tool Setter Modifying Kit for PGFUN CNC 3D Touch Probe Edge Finder Contactor

Brand: PGFUN

Features:

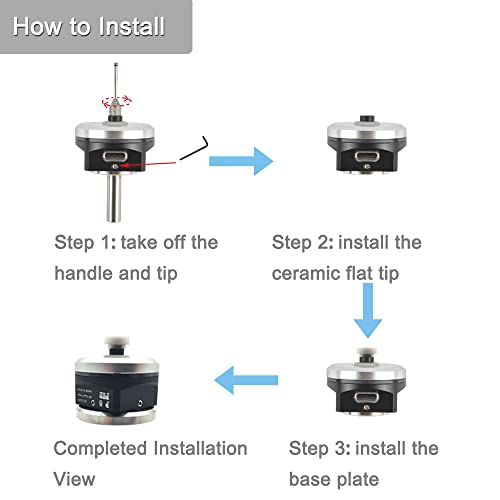

• This is a Z-axis automatic CNC tool setter modifying kit for PGFUN 3D Touch Probe, which is designed for an extra function of the touch probe, so it's recommended for desktop-level/ entry-level CNC machines.

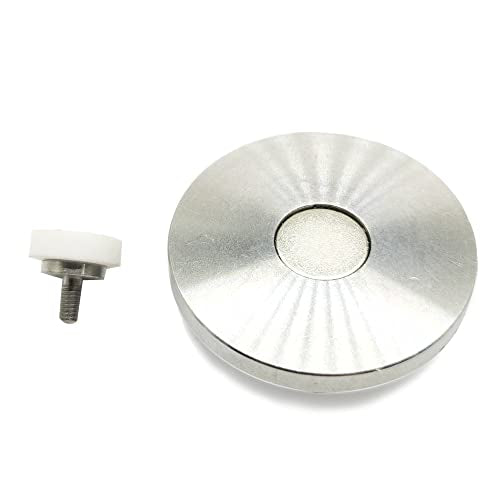

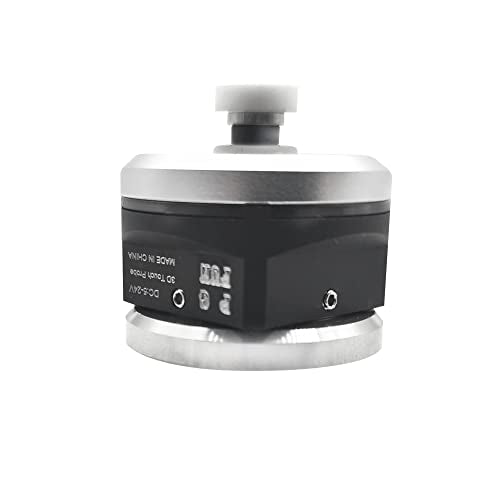

• There is a magnetic disc under the base for easy fixing, not recommended for industrial-level CNC machines or machine centers.
• Main Specification: tool height: 30mm/ 1.2inch, accuracy: 0.005 mm/ 0.0002 inch, base plate dia: 31mm/ 1.22 inch, top plate dia: 10mm/ 0.4 inch

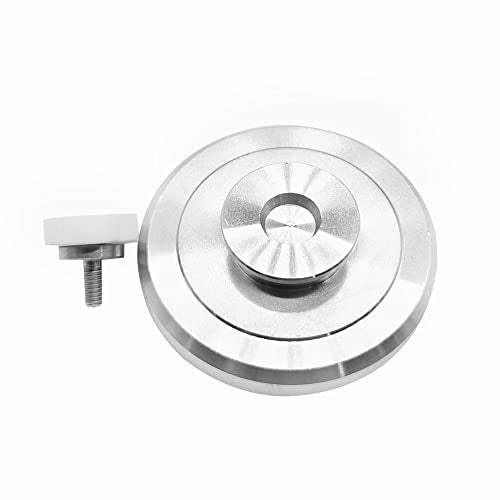

• Package Include: base plate x 1, M2.5 top plate x 1. (if more plate replacement needs, free to contact us)
• Note: This Only Fits for PGFUN 3D Touch Probe, We Are Not Responsilble for the Fitting Issue for Other Similar Touch Probe

Part Number: TR004117

Details: PGFUN The Latest V6 Pro Anti-roll 3D Touch Probe New Upgraded Waterproof Edge Finder

Specification:
Power: DC5-24V
3 NPN-NO Wiring: Red-VCC (DC5-24V power), Yellow: IO/ Signal Output, Black- GND(DCM)
Repeatability Accuracy: 0.01 mm/ 0.0004 in.
Feedrate: 50-200 mm/min.
Approach Direction: ±X, ±Y, +Z.
Over Travel Protection Distance: X- ± 4mm/0.16 in , Y- ±4mm/ 0.16 in, , Z- 2mm/ 0.08 in.
Lifetime: > 3 million triggers.
Material: fine frosted black oxidized aluminum alloy with a flat surface anti-roll design.
Fit for: Mach3 and GRBL
Package Include: 3D touch probe x 1, cable x 1, allen wrench x 1, straight probe tip x 1, wire connector pack x 1 (to solve the insufficient problem of control board wiring ports).

Software Recommendation
Probe Wizard or ProbeIt are recommended for Mach3, and GRBLGRU is recommended for GRBL.

FAQs:
Q1: Need to turn on the spindle speed?
A1: Please do not, or it may cause measurement error.

Q2: Why is the concentricity different when the probe is installed?
A2: Because the low-accuracy spring collet can't guarantee 100% positive position. After each installation of the probe, even if the concentricity is adjusted to 10 μm, there will still be deviations when the probe is re-installed. So it is best to use a AAA /UP or higher accuracy ER spring collect (run-out tolerance <0.0002") for your chuck. It is recommended to use a high-precision gauge to check the concentricity after installing the chuck.

Q3: i need a NC touch probe, what should i do?
A3: we added the NPN-NC touch probe, you can buy the right wiring version for the machine now.

Q4: Does this touch probe work for the non-conductive material like acrylic?
A4: This is a mechanical probe, it identifies and transmits the signal by physical contact, do not worry about the conductivity of the material.

EAN: 0777723135882

Package Dimensions: 2.9 x 2.8 x 1.3 inches
