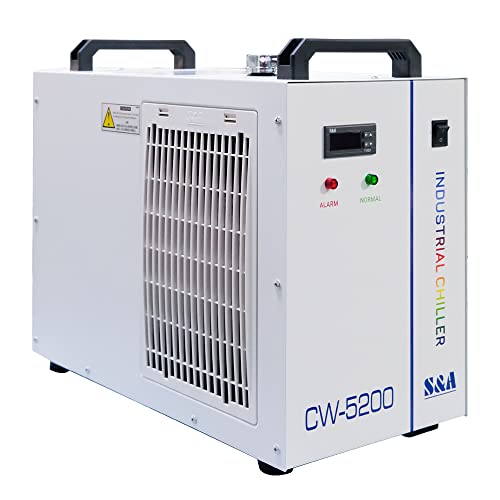

ZAC 7L S&A Industrial Water Chiller CW-5200DH Laser Chiller for CO2 Engraver Cutter Engraving Cutting CNC Spindle Water Cooling, Cools 5699BTU/H

Brand: ZAC

Color: CW-5200DH

Features:

• PRODUCT PARAMETERS: The CW-5200DH industrial water cooler chiller is 7L capacity, Using standard R-410a refrigerant,13L/min max.flow, Precision: ±32.54℉/0.3℃, Compressor power: 0.66KW 0.9HP, 110V Voltage, and 60HZ Frequency, Refrigerating Capacity: 5699BTU/h, 1.67KW, 1435Kcal/h
• POWERFUL COOLING: CW-5200 water chiller uses standard R410a refrigerant to keep laser cutting and engraving machines nice and cool during use; its 13L/min flow and 0.9hp compressor can cool up to 5699BTU per hour
• VARIOUS ALARM FUNCTIONS: This professional laser water chiller has multiple warning protection mechanisms such as water flow, high/low temperature alarm, compressor delay protection, and compressor over-current protection
• MULTIPLE APPLICATION: S&A Teyu recirculating industrial water chillers CW-5200 are able to cool CO2 laser tube or CNC spindle or laser diode or solid-state laser or RF laser tube

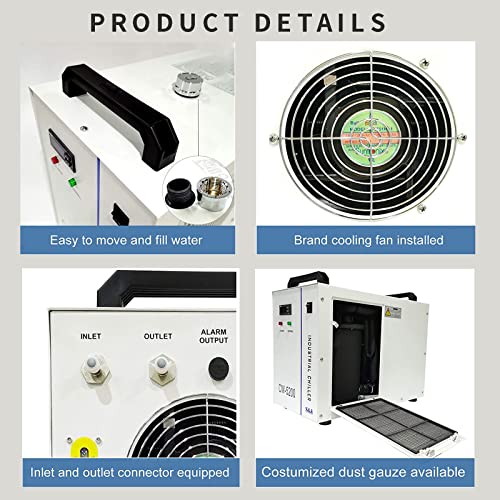

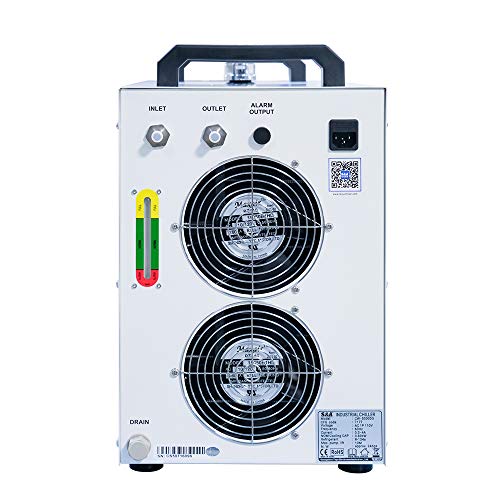

• HIGH-GRADE PORTS: CW-5200's water inlet and outlet ports are made of anti-corrosive brass to keep from any leakage problems and extend long service life. Twe-year warranty, lifetime maintenance, 24-hour online service.

model number: CW-5000/CW-5200

Part Number: ZACM033101ALN

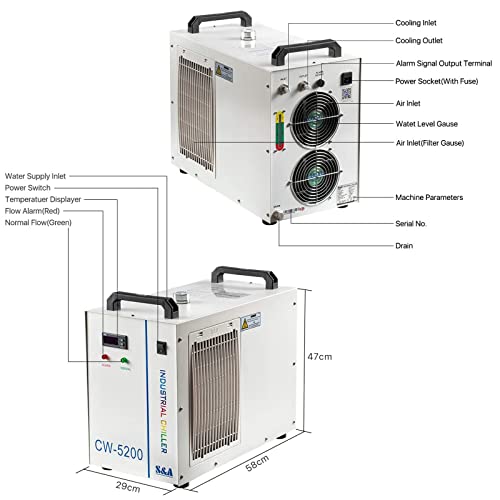

Details: 7L Cooling Tank Capacity Two Efficient Cooling Fan Precise Thermostat Multiple Alarm Functions User-friendly Handle Wide Application

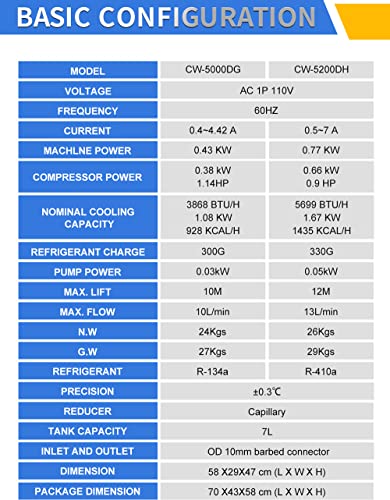

Basic Configurations: Model: CW-5200DH Voltage: AC 1P 110V Frequency: 60HZ Current: 0.5-7A Machine Power: 0.77KW Compressor Power: 0.66KW 0.9HP Nomnal Cooling Capacity: 5699 BTU/H 1.67KW 1435 KCAL/H Regrigerant Charge: 300G Pump Power: 0.05KW Max. lift: 12M Max. Flow: 13L/min N.W: 26kgs G.W: 29kgs Refrigerant: R-410a Precision: ±0.3°C Reducer: Capillary Tank Capacity: 7L Inlet and outlet: OD 10mm barbed connector Dimension: L58*W29*H47cm Package dimension: L70*W43*H58cm

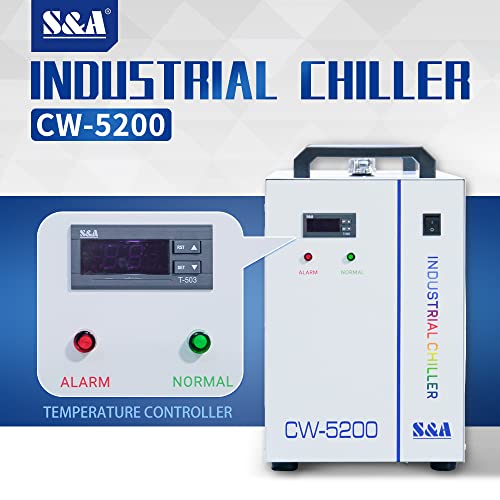

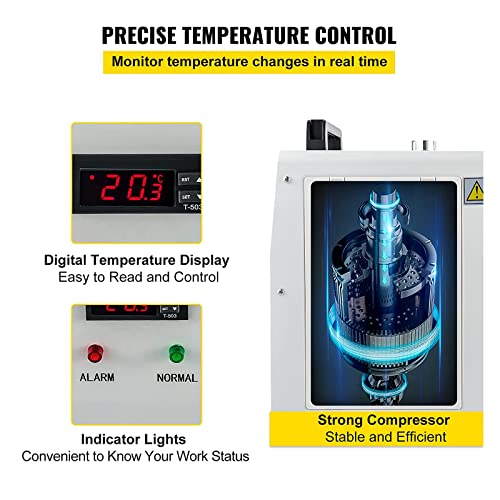

Six Advantages of Special industrial chiller: Stable refrigeration, enery saving and environmental protection, long service life Two temperature control modes, intelligent temperature control Optional multiple models, customizable, suitable for more than 100 production indus Professional R&D team, 19 years of refrigration experience Realizing precise temperature control, the highest accuracy of temperature control can reach ±0.1°C Twe-year warranty, lifetime maintenance, 24-hour online service

Package Dimensions: 27.6 x 22.8 x 16.9 inches
