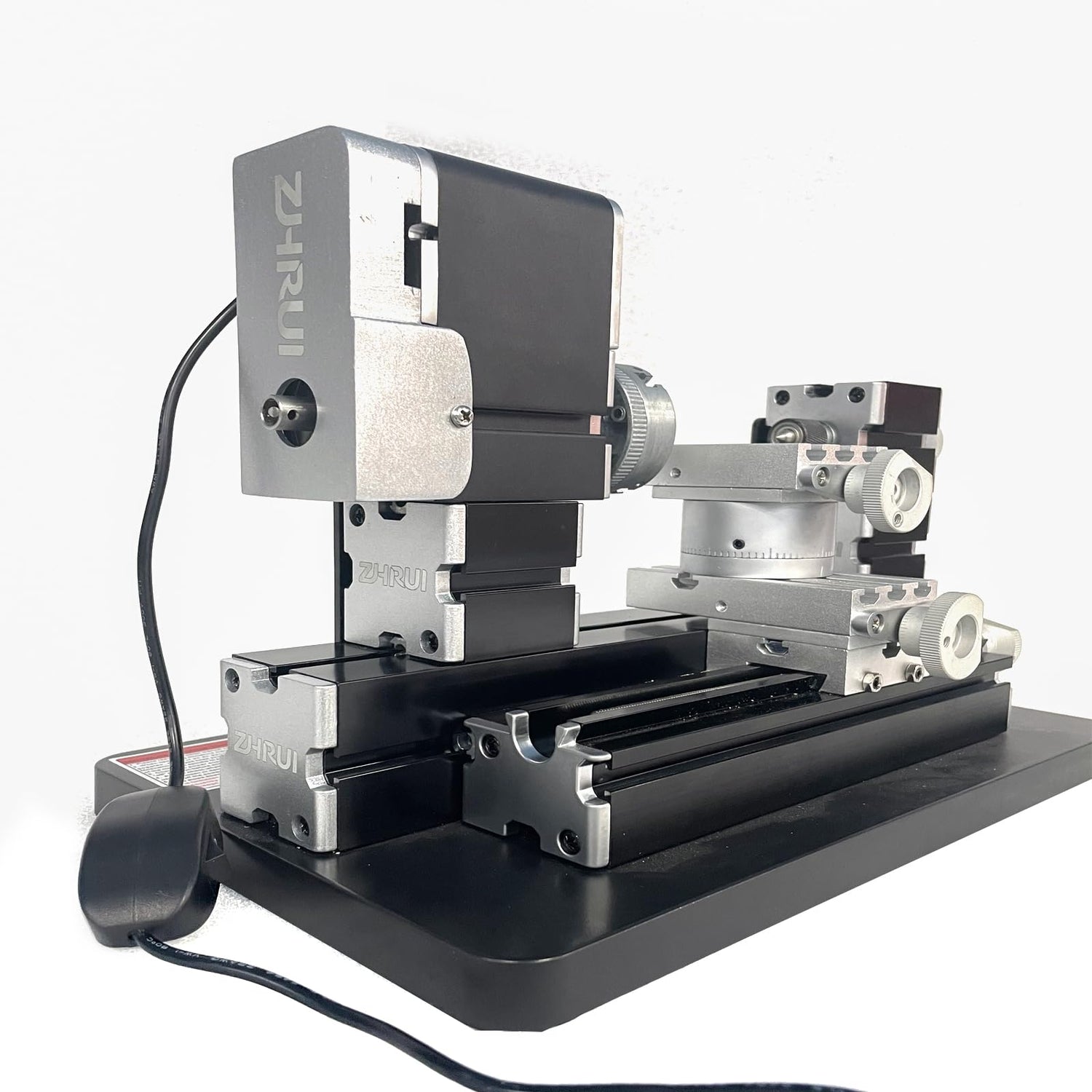

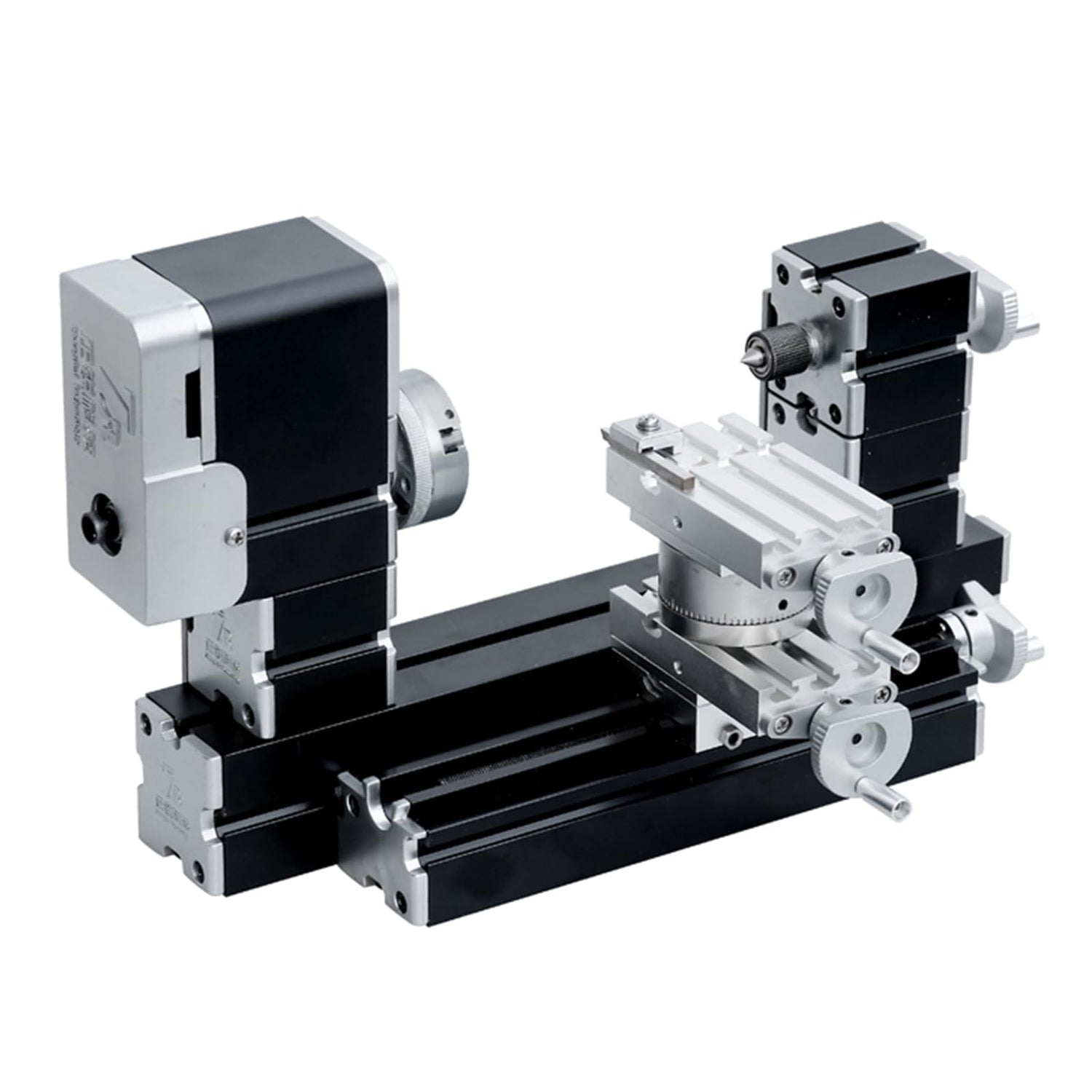

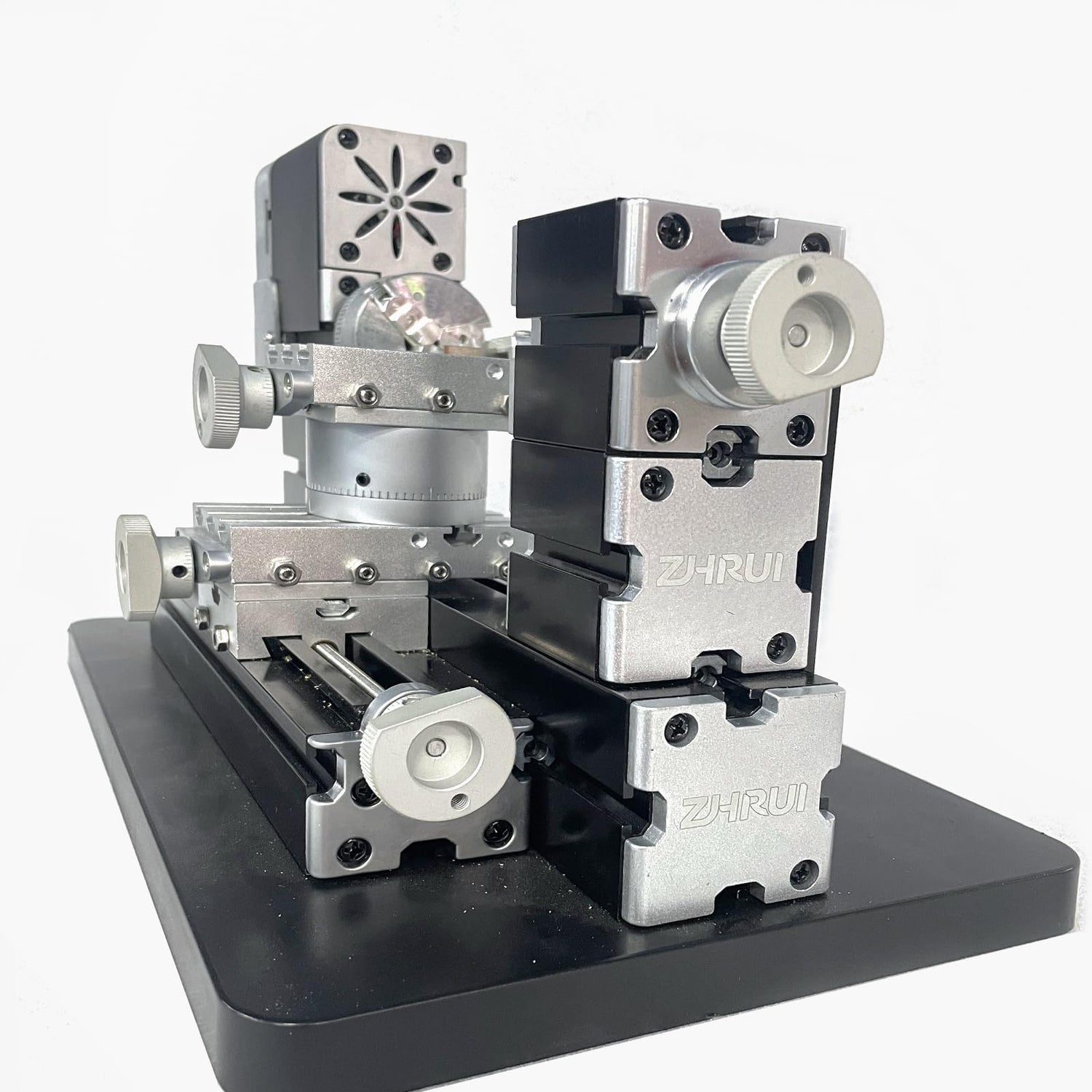

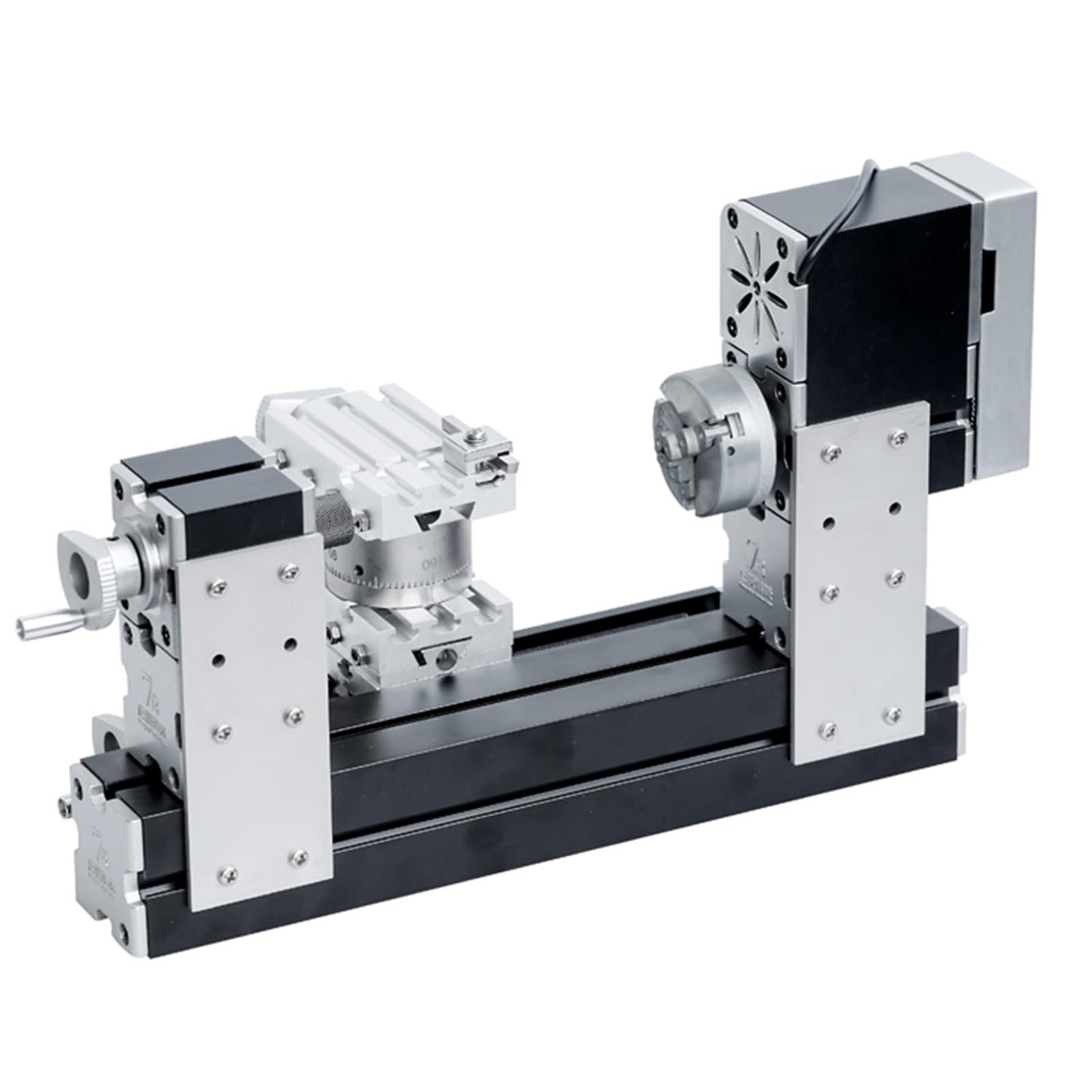

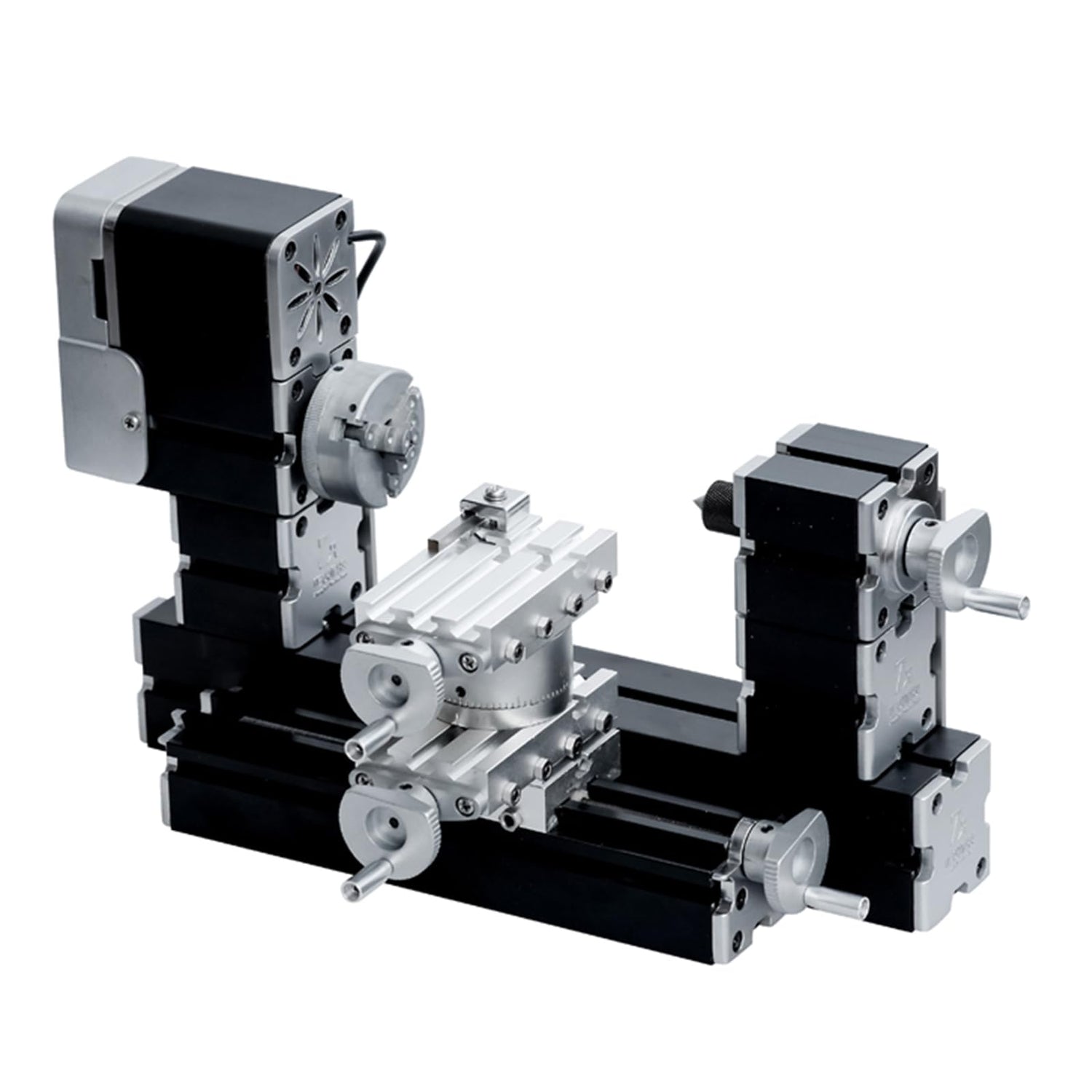

ZHRUI High Power 60W Powerful Mini Metal DIY 4-axis Rotating Lathe Lathes Machine Tools With Base 12000 rpm for Wood Soft Metals Plexiglass Plastic

Brand: ZHRUI

Features:

• Hi-power motor is adopted with all drive axes, maximum speed up to 12000 rpm, motor power supply is 144W;Input voltage/Current /Power: 12V/5A/60W;Input Voltage of Switch Power Supply:110V-240V
• The largest diameter of processed material: 50 mm. Adding intermediate blocks, it will enlarge the machining rotary diameter to 150mm;The length of processed material: 150mm;The chuck and collets is 1 to 6mm;X-axis slider travels: 150mm;Center height-75mm,center distance-150mm.
• Machine size:330mm*130mm*200mm;Bottom plate size:315mm*200mm*17mm;Machine Weight:4.22KG
• The motor case and headstock of all-metal machine tools is jointed completely. Main parts configure with metal structure and no plastic components in the whole machine body, such as motor box, headstock, hand wheels, slider, 3-jaw chunk/4-jaw chunk, turning tools clamping jaw, machine bed, gear, side cover, working table, connection piece, tailstock, countershaft, drive belt cover etc.
• Fan built-in motor is featured with Ultra-quiet & high rotary speed. That's special customized option for motor cooling & effective work.The most parts of machine tools are dealt with two surface treatment methods of electroplating and ink-jet anodized to make appearance more cleaning & glorious, lasting rust-proof. Machine bed is made of Europe standard T-type aluminum material, moving more precisely &smoothly.
• 3C quality assured transformers have the function of over-current, over-voltage and over-heat protection.To improve the stability and service life, the connection block be fixed by square nuts, which avoid screw loosing after long time vibration.The connection piece adopts dovetail structure, which matches with each slot of the machine tools parts to enhance its performance and accuracy.

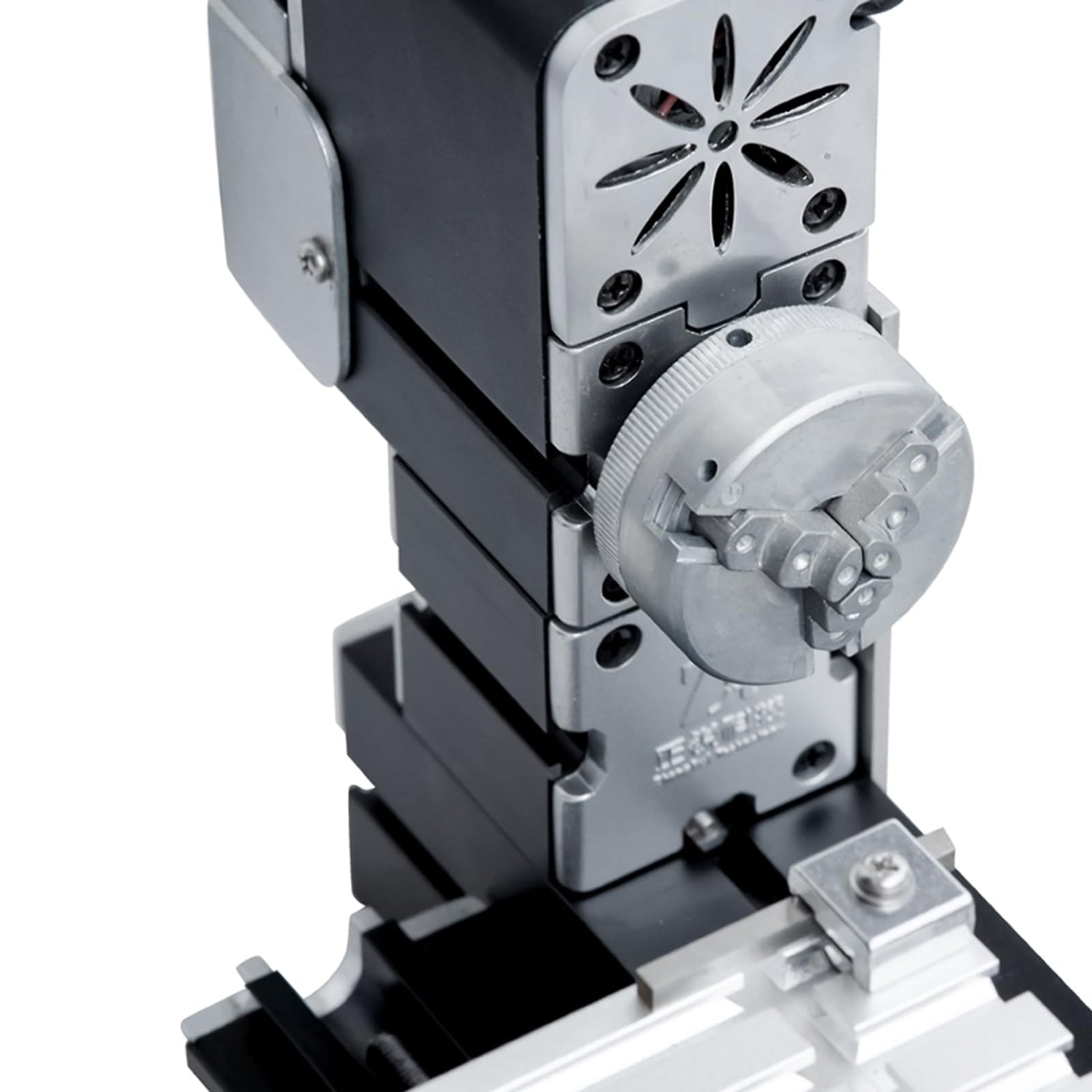

• Versatile application: The turning tools of mini metal lathe are made of steel material, which can be perfectly used to process the soft metal (gold, silver, copper & aluminum), acrylic and engineering plastics etc.The chuck is fixed by a hexagon nut to increase the tightness of the clamping tools (such as drill bits, cutters, wood-turning lathe driver).
• There are three parallel dovetail slots available on the big slider, which facilitate the movement of mini lathe tools and installment of the holders and the cutlery.Adding intermediate blocks under motor box, tailstock and lathe tools clamping jaw, which enlarge the machining rotary diameter & practical usage.
• Adding intermediate blocks under motor box, tailstock and lathe tools clamping jaw, which enlarge the machining rotary diameter & practical usage.3-jaw chuck can be used to clamp the material at a maximum diameter of 50mm, single-action 4-jaw chucks is available, maximum diameter is expanded to 60 mm. It is perfect optional choice for irregular shape (such as square, elliptical, hexagonal material), also expand the effective work area.

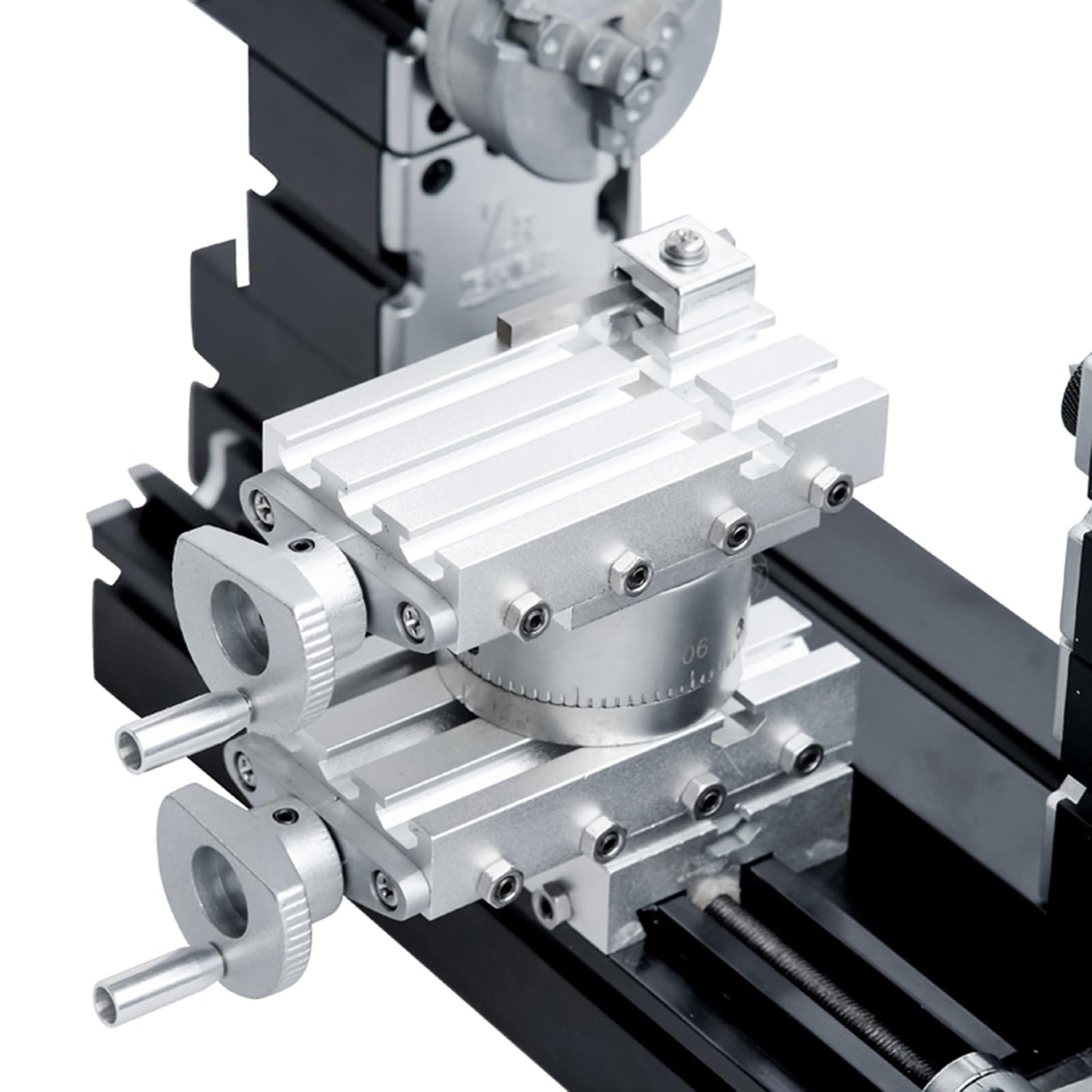

• With fast angle positioning processing function, the A rotating axis of 4-axis (X axis, Z axis, Z1 axis, A axis) Rotary Miniature lathe could rotates from -90 degrees to +90 degrees and the positioning accuracy is 2.5 degrees. Under coordination with A-axis, the Z1 axis could realize the machining of Angle feed

Details: Description

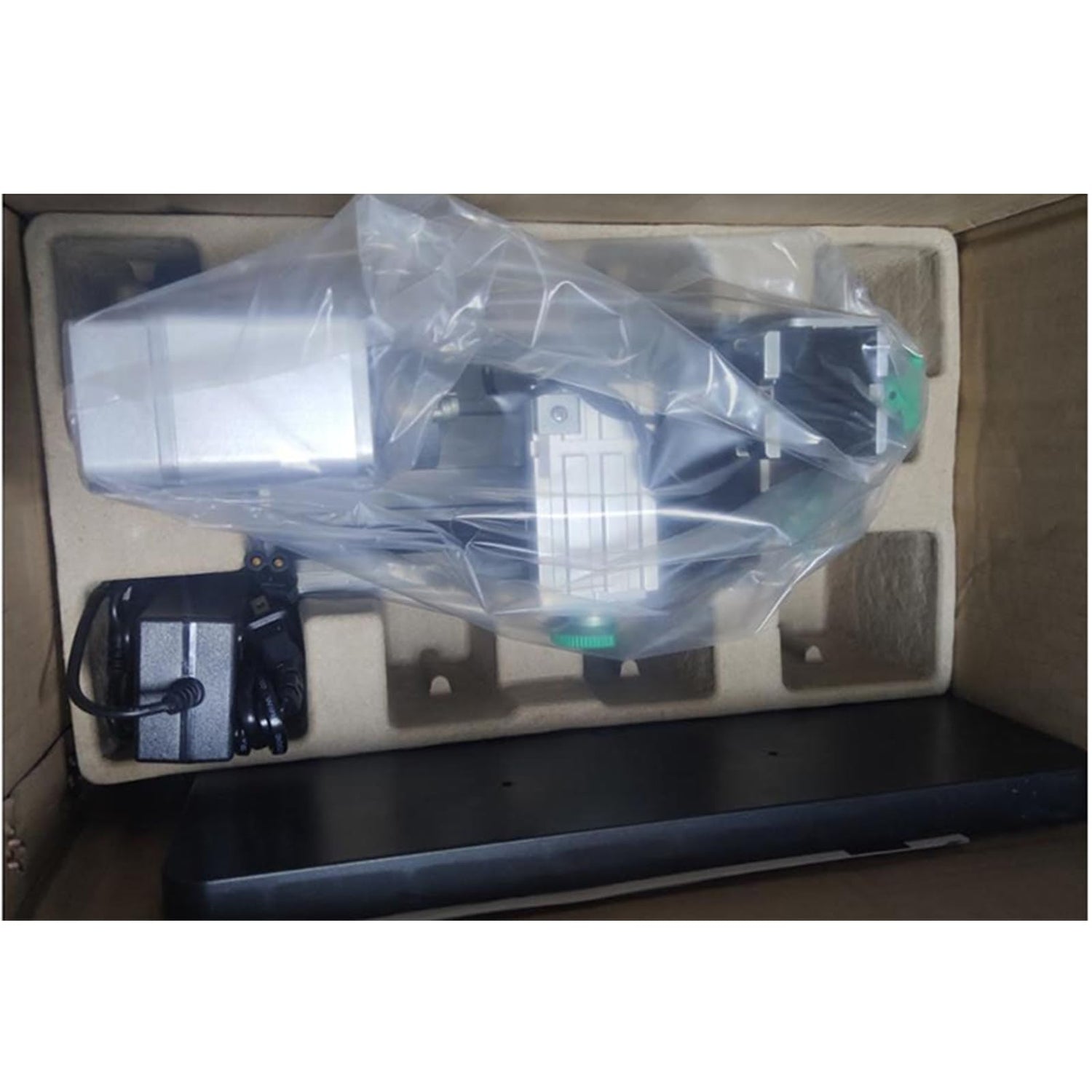

Technical Parameter: Hi-power motor is adopted with all drive axes, maximum speed up to 20000 , motor power supply is 144W Input voltage/Current /Power: 12V/3A /36W Input Voltage of Switch Power Supply: 110V-240V The largest diameter of processed material: 50 mm. Adding intermediate blocks, it will enlarge the machining rotary diameter to 150mm; The length of processed material: 150 mm The chuck and collets is 1 to 6mm X-axis slider travels: 150mm Center height-75mm,center distance- 150 mm. Machine size:330mm*130mm*200mm;Bottom plate size:315mm*200mm*17mm Package Includes: 1 x Mini Lathe 1 x Set of Accessories 1 x Power Adapter 1 x Workbench Plate 1 x User Manual
Q & A:
Q1: What's the usage of ZR miniature machine tools?
The miniature machine tools have the same features as big industrial machines, the only differences are their size and the 12V drive. You can use it for DIY model making and some little crafts, which is also able to process hard wood, soft metal, alloy etc...
Based on its modularity and the child friendly use, that's ideal& creative product to inspire children hand-on skill&innovative ability.
Q2: Is it easy to assemble and operate the miniature machine tools?
What we provided is the installed complete machine tools, meanwhile, there is full set of English manual & guide videos to show you how to use it smoothly. If you still have any query, please contact us by e-mail / whatsapp/ mobile phone for online service.
Q3 : How about the after sales service?
Firstly, quality guaranteed by the authoritative certificate of CE, RoHS, FCC , ISO9001:2008
Second, free spare parts and one year warranty

EAN: 0766157740304

model number: ZRCC04060
